Product Capabilities

Advanced Cylinders has a H Series NFPA cylinder production line, an AG Series agricultural cylinder production line, a TC Series telescopic cylinder production line, and also is a custom cylinder manufacturer for all segments of industry.

5 DAYS SHIPPING OUT - STOCKED STANDARD NFPA CYLINDERS FROM 1 1/2" TO 4" BORE SIZES.

2 DAYS SHIPPING OUT - STOCKED AG AGRICULTURAL CYLINDERS FROM 1 1/2" TO 4" BORE SIZES.

2 DAYS SHIPPING OUT - STOCKED TC TELESCOPIC CYLINDERS FOR SINGLE ACTING SIZES.

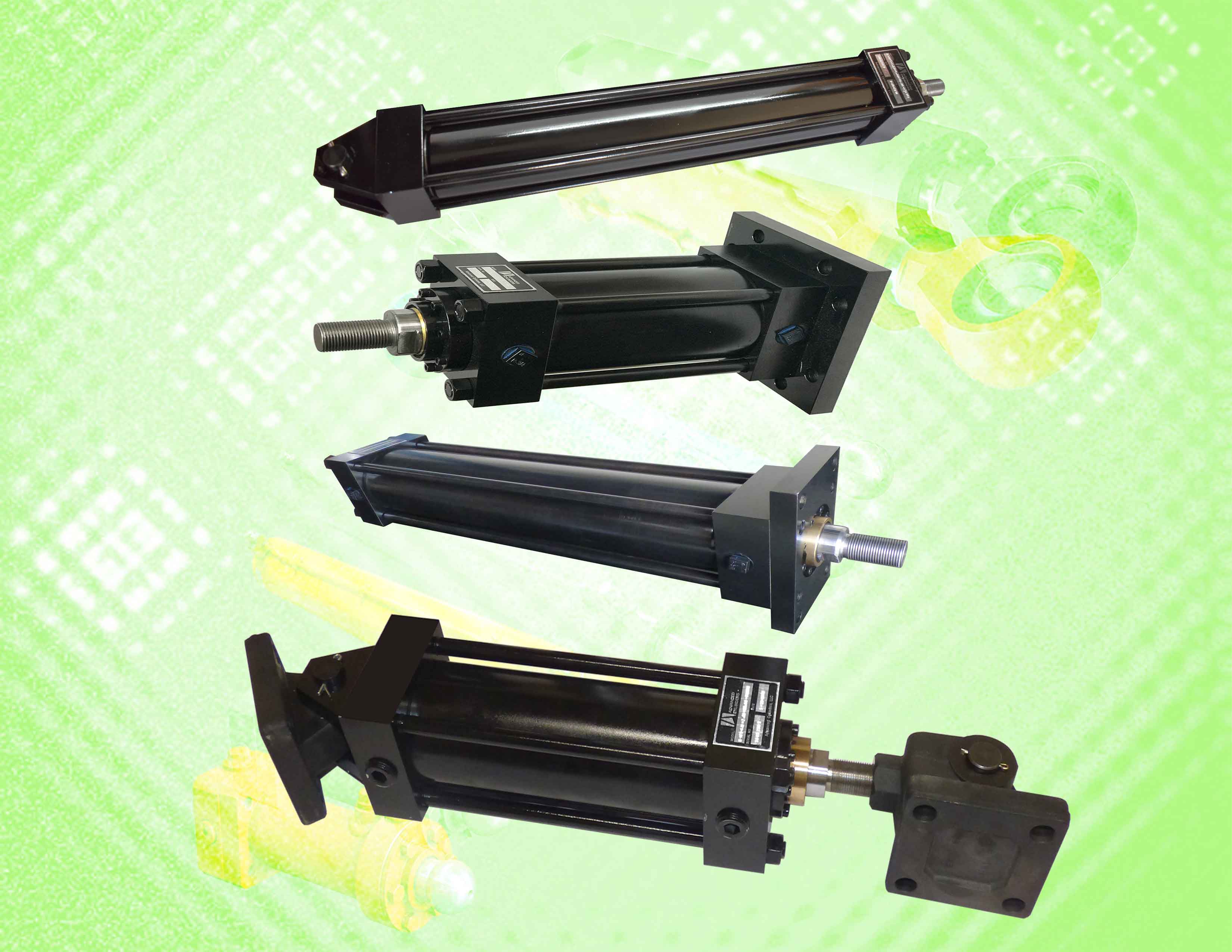

Our standard heavy duty H Series cylinder line has 17 NFPA mounting styles. The bore sizes are from 1 1/2" to 20". The rod sizes are from 5/8" to 10". Our NFPA cylinders can have either standard 3000 PSI with 200ºF or higher pressure with higher temperature for customers' specification. We can cross-over all suppliers' NFPA cylinders.

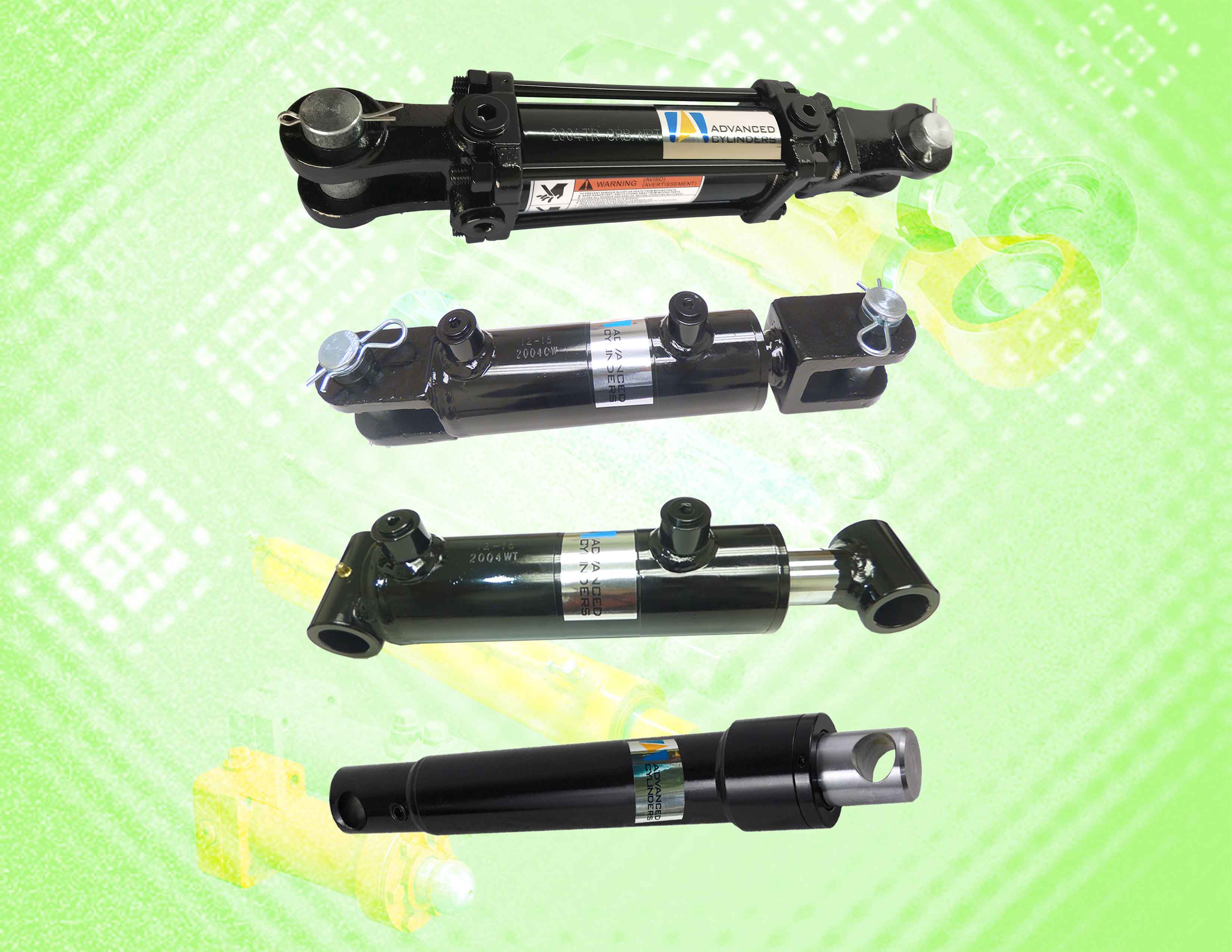

Our standard AG Series agricultural cylinder line has the following types, Tie Rod (TR, TH), Weld Clevis (CW), Weld Tube (WT), Snow Plow (SP), and Weld Hole (WP). The bore sizes are from 1 1/2" to 4". The rod sizes are from 1" to 2 1/2". The stroke sizes are from 4" to 48" and 72". The pressure has either standard 2500 PSI or standard 3000 PSI. The ports is either NPT or SAE. We can cross-over all suppliers' agricultural cylinders.

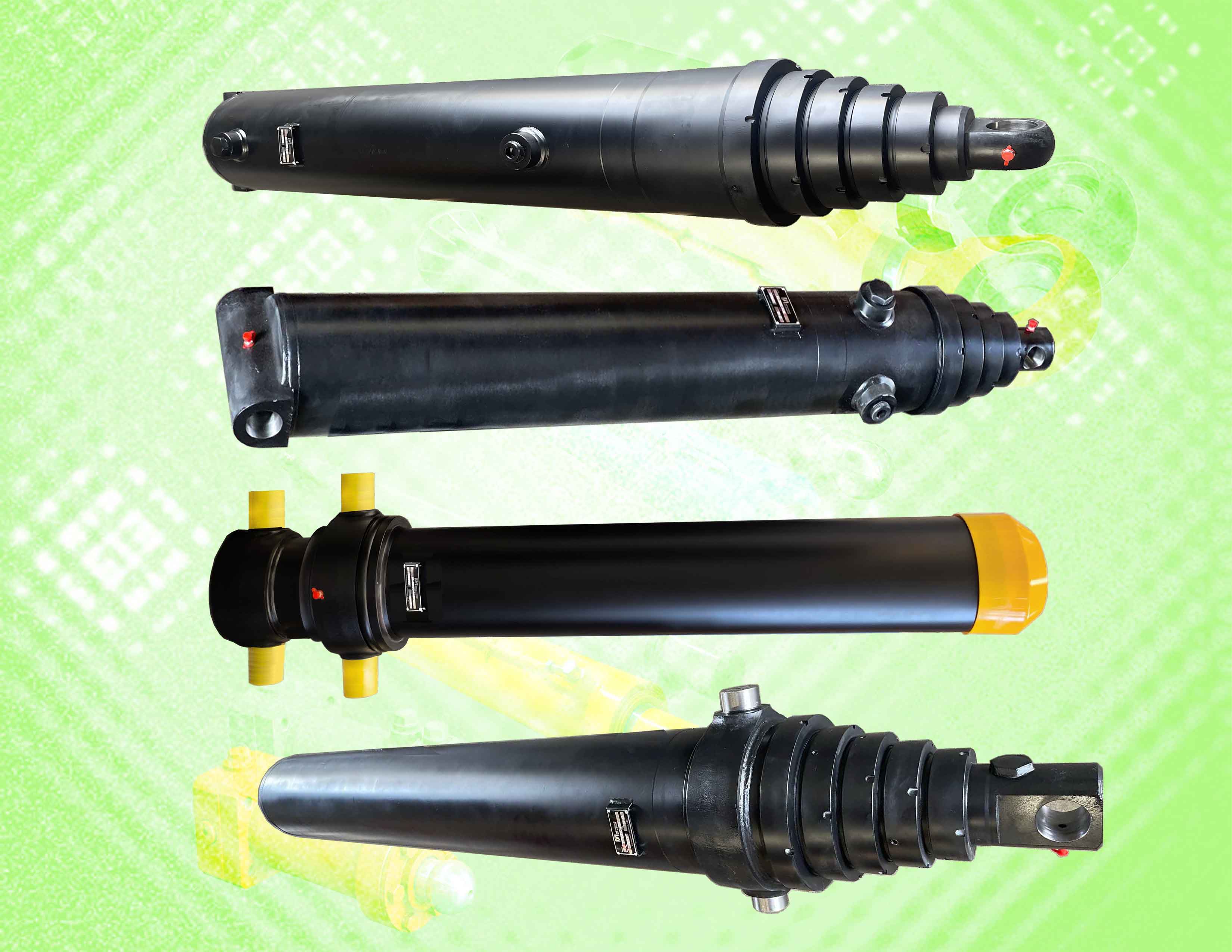

Our standard TC Series telescopic cylinder line has the following types, Pin and Trunnion Mount, and 7 Tons and 12 Tons Inverse. The stages are from 3 to 5. The strokes from 72" to 340". The pressure has 3000 PSI. We can cross over all suppliers' telescopic cylinders.

We stock all standard NFPA cylinders and finished cylinder parts with long chromed rods, honed tubing and tie rods from 1 1/2" to 4" bore sizes. For those bore size cylinders with any stroke, we can machine ends, assembly and test in our cylinder shops.

We stock four AG Series agricultural cylinders, Tie Rod (TR), Weld Clevis (CW), Weld Tube (WT) and Snow Plow (SP) from 1 1/2" to 4" bore sizes and from 4" to 48" strokes.

We stock most popular TC Series telescopic cylinders to cross over Custom Hoist's 4630, 4649, 4680, 4480, 4561, 4402, 4512, 4689 and 4526 new designs and also old designs, too.

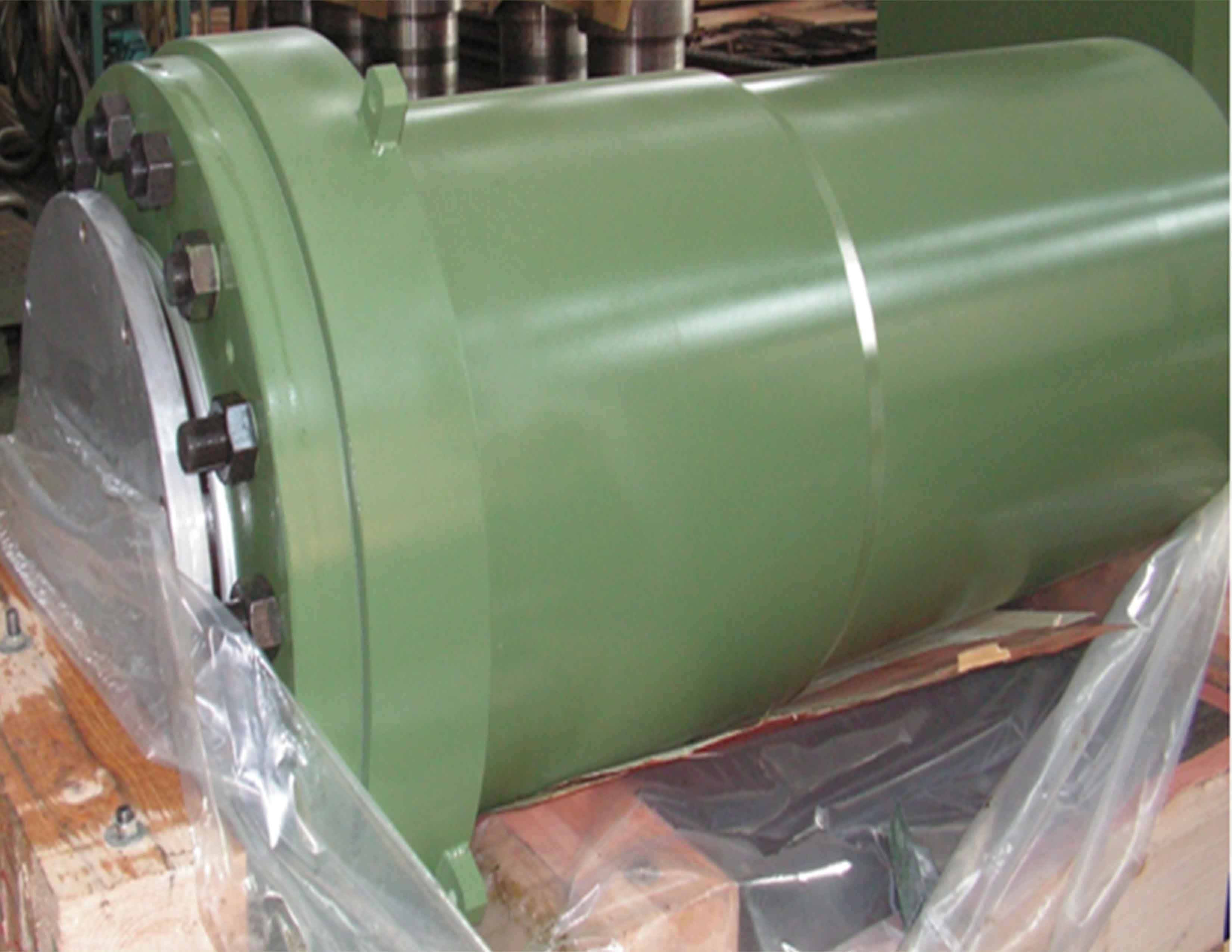

We make custom cylinders for all industry application. These areas include construction and mobile equipment, mine machine, agricultural machinery, heavy trucks, waste management, material handling and lots more. From the beginning, special orders and custom solutions have been a strong point at Advanced Cylinders.
